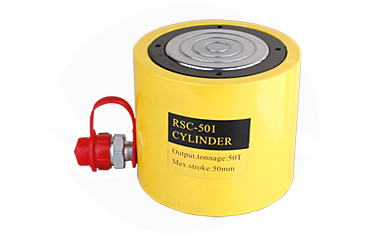

Item No:RSC-5050 General Purpose Hydraulic Cylinders
ITEM NO£ºRSC-5050
Tonnage ton(T) £º50
Work travel(mm) £º50
Cylinder Effective Area(cm2)£º56.7
Oil Capacity(L) £º0.354
Collapsed Height(mm) £º104
Extended Height(mm) £º154
Outside Dia. (Ømm) £º128
Cylinder Bore Dia.(Ømm) £º95
Plunger Dia(Ømm) £º65
Thread for input oil-port(zg)£º3/8"-19
Saddle Protrusion from Plgr.(mm) £º2
Weight(kg) £º9.8
