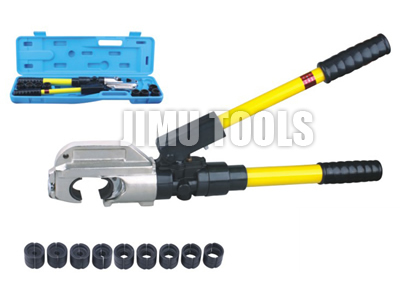

Product Description
Safety system inside
Crimping force: 13T
Crimping range: 400mm² Max. Copper conductor size
Stroke: 38mm
Oil capacity: 200cc
Weight: Approx. 7.8kg
Package: Plastic box
Weight of box: 1.80kg
Accessories:
Crimping dies: 50, 70, 95, 120, 150, 185, 240, 300, 400mm²

Feature:
1. Design to accommodate hexagonal, dies for applying compression fittings to copper, aluminum conductors.
2. Two stage pumping action for rapid ram advance to the connector hold positon with minimum pumping action.
3. Automatic retraction when the pressure reaches 700kg/cm² (12T)reached.
4. The glass fiber operation insulates the stick, can bear the electric voltage 200KV, keeping on the minute.
5.180· Rotatable head.
6. The pressure outside the body adjusts to press the valve, don´ T need the whole structure to lie down.
