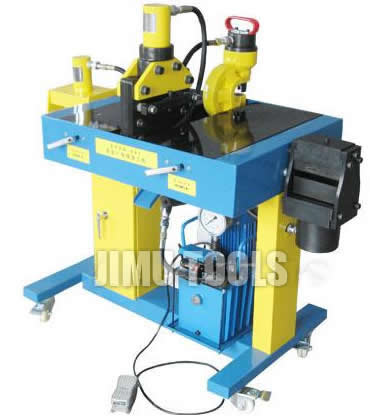

Item No:EPCB-401 Busbar Processor Machine

Model: VHB-200A bus bar processing machine
Features: manual control valve clear direction for the deployment of the working machine functions; Teleconverter comes with a foot switch a person may operate;
Ping Li bending angle accurately. Copper / aluminum row after the completion of bending does not produce tears status, to ensure the copper / aluminum row of conductive safety and performance;
Package of equipment, including electric hydraulic pump, cut row machines, punching machines, bending machine and embossing machine row, all in an integrated manner mounted on mobile vehicles. Facilitate the flow of the workshop or field operations;
Uses
Copper and aluminum row shearing, punching, Ping Li bending, embossing;
Transformer, switch cabinet assembly;
The installation of power transmission project operations;
Information
Cutting row machine work to contribute to: 23ton;
Punching machines contribute to the effort: 31ton;
Curved row of machines contribute to the effort: 20ton;
Embossing machines contribute to the effort: 55ton;
Specifications
Voltage (V): 220;
Hydraulic work (kgf/cm2): 700;
Cut material and capacity
Copper / aluminum row: 150 mm × 12 mm;
Bending material and capacity
Flat bend copper / aluminum row: 200 mm × 12 mm;
Open-cell materials and the ability
Copper t12.5 mm: Ø9 mm-Ø21 mm;
Aluminum row t12.5 mm: Ø6 mm-Ø21 mm;
Embossing material and capacity
For busbar (mm): ≤ 150 × 12.5;
Working stroke (mm): 26: Working Pressure (T): 55;
Weight (kg): 320
Standard accessories: Punching Mold 90 ° V-type flat bending mold;
