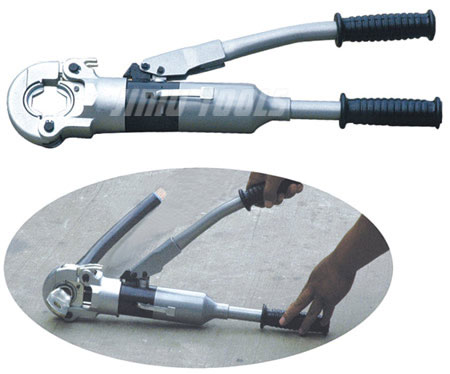

Item No:QZL-400F Hydraulic Crimping Tool

Product Name:
Hydraulic crimping tool

Product Description
Safety System Inside
Crimping range: 16-400mm²
Crimping force: 100KN
Crimping type: Hexagon crimping
Stroke: 17mm
Length: Approx. 460mm
Weight: Approx. 4.7kg
Package: plastic box

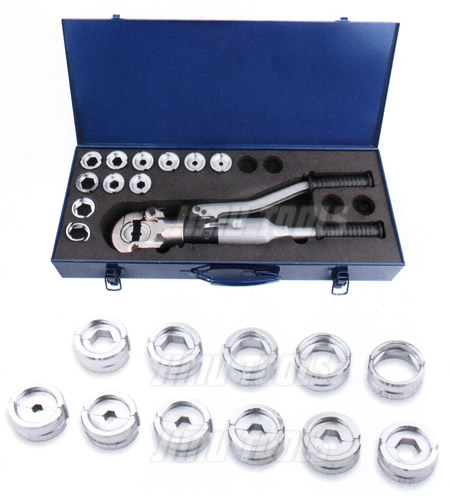

Accessories:
Crimping dies: 16.25.35.50.70.95.120.150.185.240.300.400mm²

Features:
1. The tool features a double speed action: A fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for cutting.
2. For ease of operation and comfort the operator the. Tool head can be fully rotated through 360 degrees.
3. The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and the pressure release system can easily be operated at any stage of compression.
4. With interchangeable dies.
