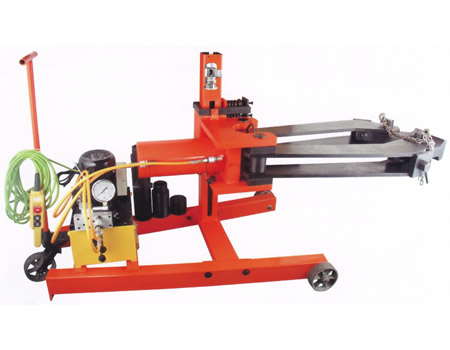

Item No:PH553C100 Car Puller 100 tons

Product Description / Specifications:

Minimum to open away from the A 15 ";
When opened from the depth of the minimum B 42 ";
Largest open from C 48 ";
When the maximum depth of open distance D 34 ";
Pull end catch size E, F, G 1 ", 2,1 / 4", 5 ";
Vertical height adjustment range 12 "-36";
The total length of 94 ";
Work a maximum thickness of 12 ";
Cylinder stroke H 10 1 / 4 ";
Power source required (VHz) 380/50/60.

• Adjustable head to pull claw claws always contact with the workpiece surface, maintaining chain of the claw head positioning; from the greater the tension clamp system allows greater clamping force;

* 100 tons of oil by single action, spring return cylinder features which have a maximum working pressure 10000PS |;

* Puller rings enhances the processing center from the ground distance of more than 36 "while still working;

• Adjusting the handle can Puller moved up and down in the vertical direction;

* Spring-loaded system can be uneven load bearing 100 tons of meat;

* A two-speed hydraulic pump-type; high pressure line with a 25-foot remote control electric pump;

* Mobility Puller can.
