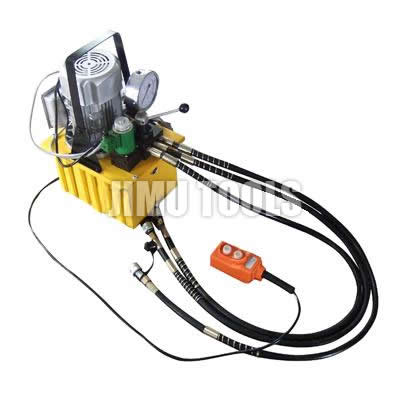

Item No:EHP-700BS-3 Hydraulic Electric Pump

[Features]
Three-loop electric pump sets the initial advantage of electric pumps, but a three-way valve attached to tubing and three and three fast interface, so that the electric hydraulic pump can be directly and simultaneously punching machine, hydraulic cutting machine row, bent row machine, hydraulic pliers, hydraulic cable cutter, hydraulic tools, select the three split device link. In three shunt valve punching machine, when the direction of the steering punching equipment, if you want to cut cut row row when turning the device, and so on.
Three-loop electric pump electric pump needs to overcome the previous limitations of external links, three-loop three-way valve connected electric pump does not require, you can work the same three-way valve. With both light and easy to use. Functional equivalent of a combination portable triple busbar processing machines.

¡¾Specification¡¿
Rated pressure: 70MPa
Low pressure 2.5 MPa
Rated flow: pressure 0.8 (L / min)
Low 2.5 (L / min)
Voltage (V): 220 / 380
Fuel tank capacity (L): 15
Motor Power (KW): 0.75
Weight: 32KG
Dimensions: 37X23X49cm
